Outlier Analysis

Rob Wiederstein

Overview

Illustration

Princess Fiona:	“What kind of knight are you?”
Shrek:	“One of a kind.”

Based Upon

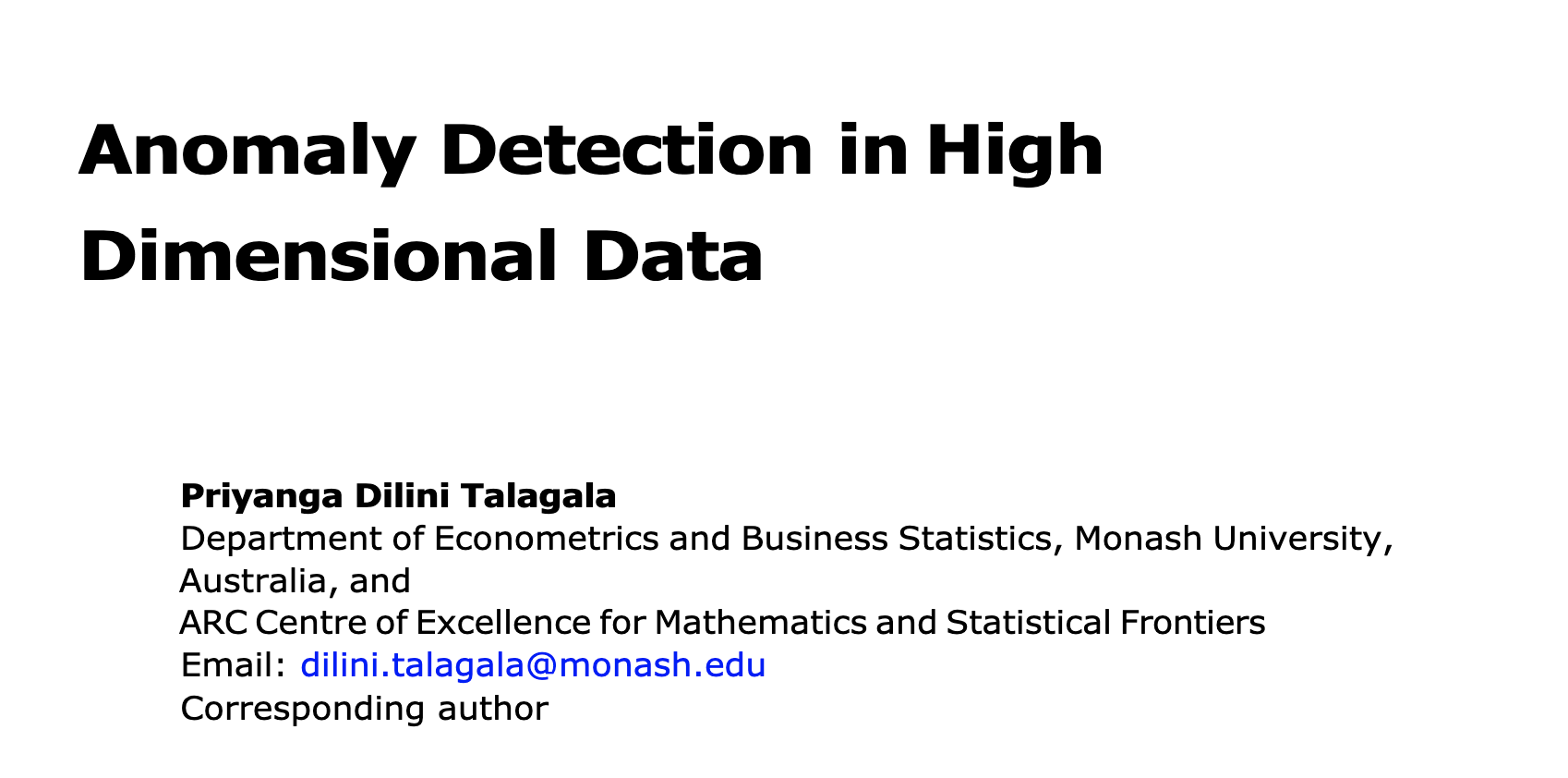

Article[1]

“We applied our stray algorithm to a dataset obtained from an automated pedestrian counting system with 43 sensors in the city of Melbourne, Australia (City of Melbourne 2019; Wang 2018), to identify unusual pedestrian activities within the municipality.” The article uses the KNN algorith and scagonostics to identify days of unusual activity.

Roadmap

• Basics
• Distributions
• Models (KNN)
• Part B Claims Data
• Scagnostics
• Interactive Display

Also Known As

“outliers, novelty, faults, deviants, discordant observations, extreme values/cases, change points, rare events, intrusions, misuses, exceptions, aberrations, surprises, peculiarities, odd values and contaminants”[1]

Definitions

• Kurtosis – is a measure of the tailedness of a distribution. Tailedness is how often outliers occur.

• Outlier – “An outlier is an observation which deviates so much from the other observations as to arouse suspicions that it was generated by a different mechanism.”[2]

• Skewness is a measure of the asymetry of the probability distribution of a real-valued random variable about its mean.

• Standardize scale all of the values in the dataset such that the mean value is 0 and the standard deviation is 1.

Symbols

Symbol	Short	Meaning
\(\mu\)	“mew”	mean
\(\sigma\)	“sigma”	std. dev.

None.

Basics

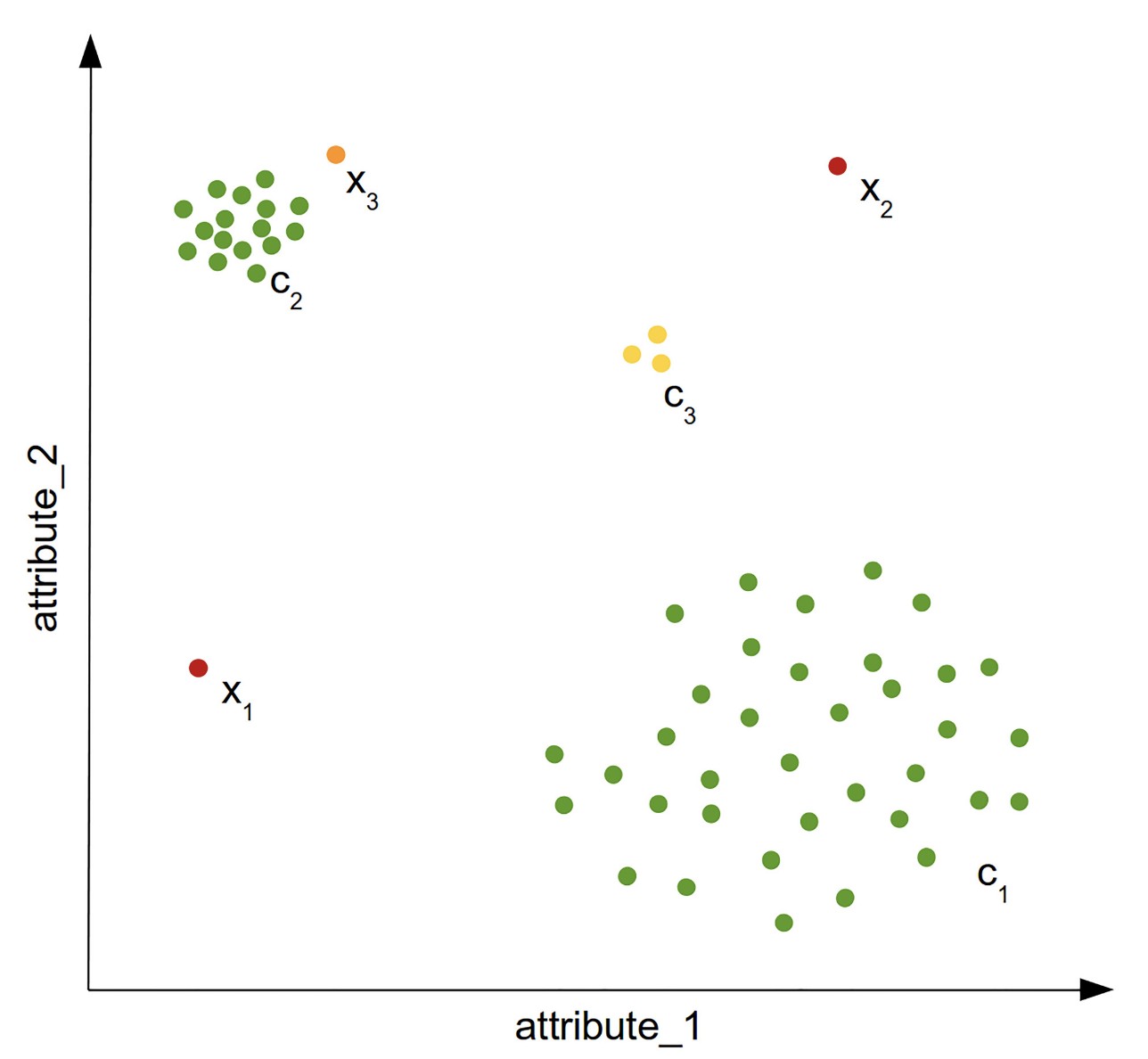

Outliers Classified

\(c_1\) and \(c_2\) are clusters; \(x_1\) and \(x_2\) are global anomalies; \(x_3\) is a local anomaly; and \(c_3\) is potentially ambiguous. [3]

“Two anomalies can be easily identified by eye: x1 and x2 are very different from the dense areas with respect to their attributes and are therefore called global anomalies. When looking at the dataset globally, x3 can be seen as a normal record since it is not too far away from the cluster c2. However, when we focus only on the cluster c2 and compare it with x3 while neglecting all the other instances, it can be seen as an anomaly. Therefore, x3 is called a local anomaly, since it is only anomalous when compared with its close-by neighborhood.”[3]

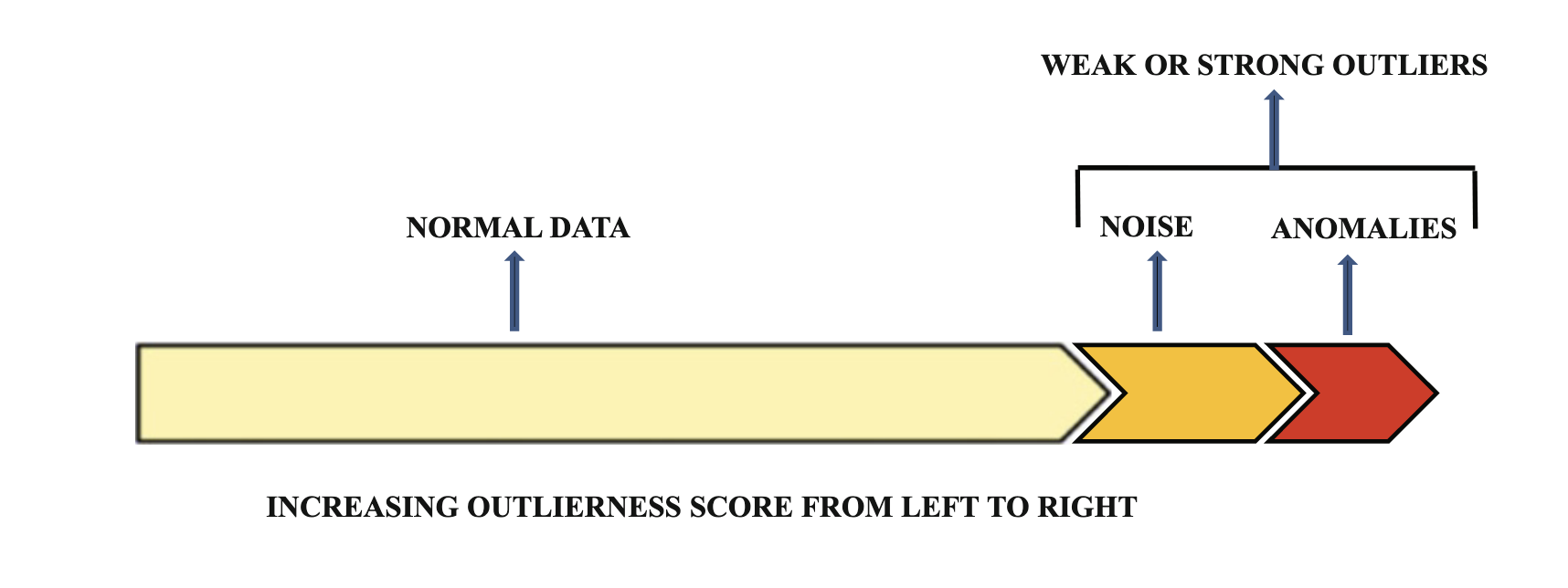

Continuum of Outlierness

Univariate Outliers

The detection of outliers in the observed distribution of a single variable spans the entire history of outlier detection. It spans this history not only because it is the simplest formulation of the problem, but also because it is deceptively simple.[4]

\[ \{1, 2, 3, 4, 50, 97, 98, 99\} \]

Distance from the Center Rule

“The word outlier implies lying at an extreme end of a set of ordered values – far away from the center of those values. The modern history of outlier detection emerged with methods that depend on a measure of centrality and a distance from that measure of centrality.” [4]

\[ \{1, 47, 47, 49, 51, 52, 55, 100\} \]

Common Outlier Definitions

• 1.5 x the inter quartile range - Tukey

• 3.0 x the standard deviation

• Percentile?

1.5 IQR -

3x st dev - this rule uses the mean and the standard deviation, more appropriate for symetric distributions.

All rules for identifying outliers are arbitrary

Four Methods to Identify Outliers

1. Extreme Value Analysis
2. Probabilistic and Statistic Models
3. Linear Models
4. Proximity-Based Models
   • Cluster
   • Density
   • Distance <==(We are here!)

EVA: “The most basic form of outlier detection is extreme-value analysis of 1-dimensional data. These are very specific types of outliers in which it is assumed that the values that are either too large or too small are outliers.” Singh and Upadhyaya 2012 “The key is to determine the statistical tails of the underlying distribution.” PSA: “In probabilistic and statistical models, the data is modeled in the form of a closed-form probability distribution, and the parameters of this model are learned.” LM: These methods model the data along lower-dimensional subspaces with the use of linear correlations. PB: “Proximity-based methods are among the most popular class of methods used in outlier analysis. Proximity-based methods may be applied in one of three ways, which are clustering methods, density-based methods”

-Proximity based. “Proximity-based techniques define a data point as an outlier when its locality (or proximity) is sparsely populated.”[5] Cluster, Distance and Density based. “The distance of a data point to its k-nearest neighbor (or other variant) is used in order to define proximity.”[5]

Tools Density Plot

About 68% of values drawn from a normal distribution are within one standard deviation σ away from the mean; about 95% of the values lie within two standard deviations; and about 99.7% are within three standard deviations.[6] This fact is known as the 68–95–99.7 (empirical) rule, or the 3-sigma rule.

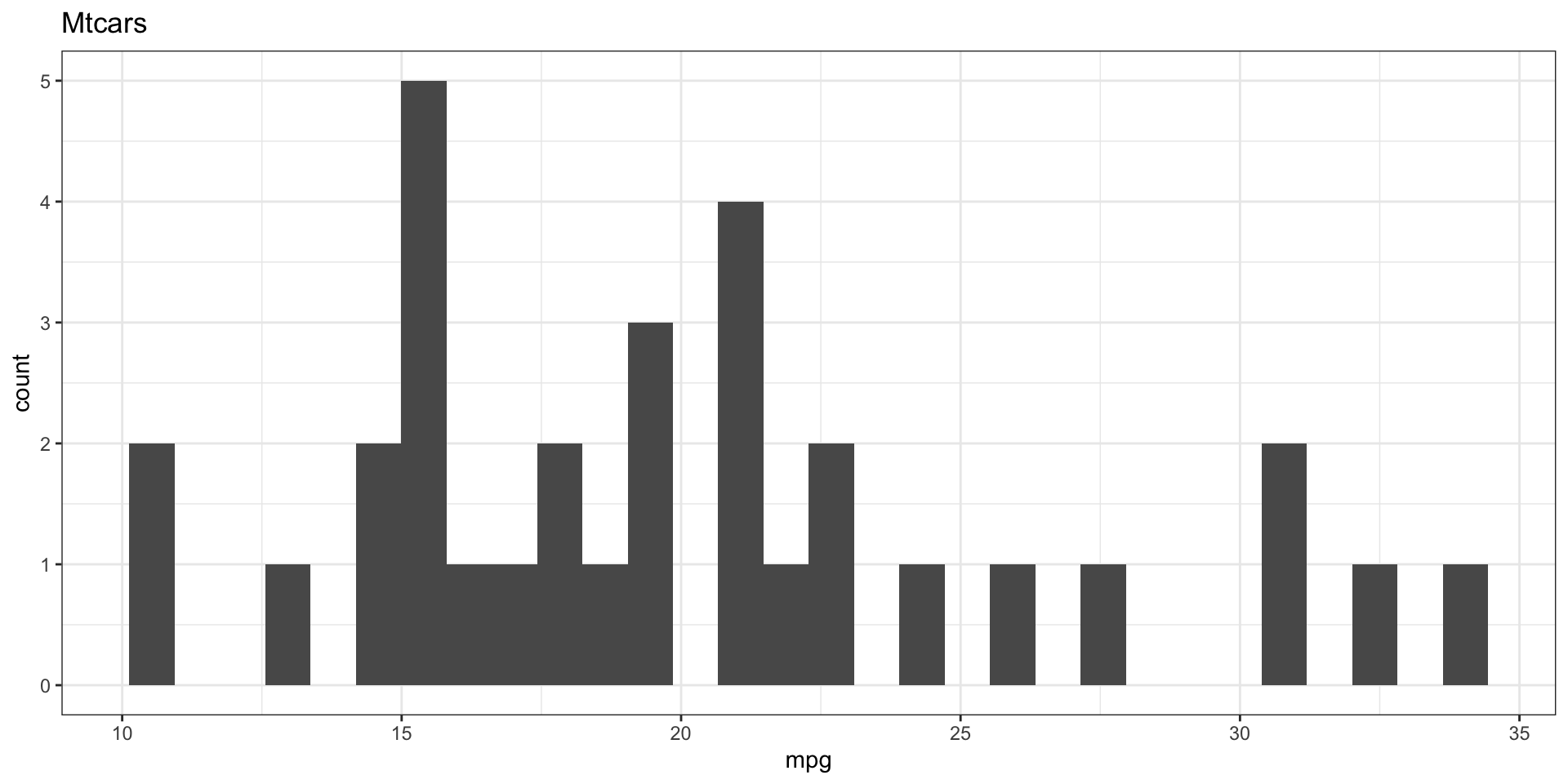

Tools Histogram (Binning)

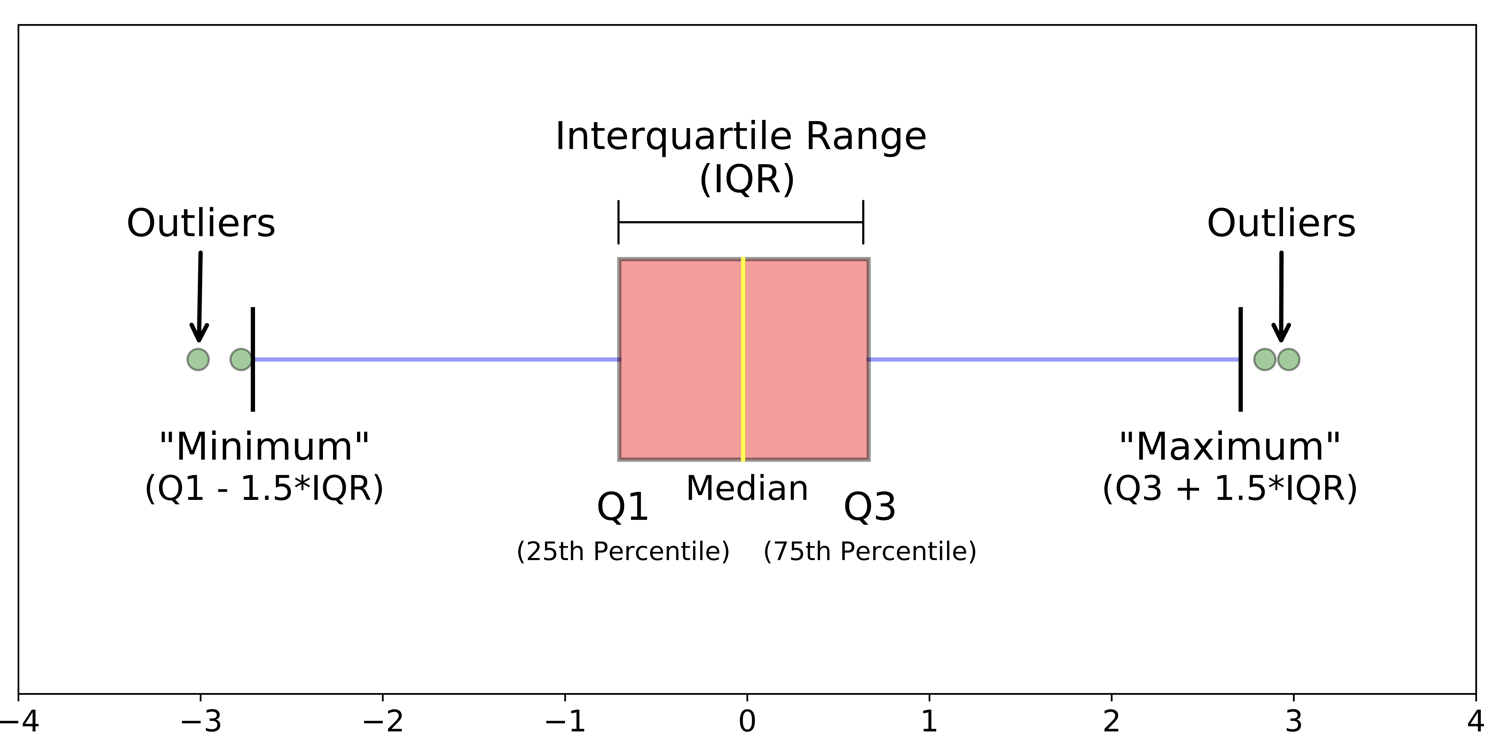

Tools Boxplots

“In descriptive statistics, a box plot or boxplot is a method for graphically demonstrating the locality, spread and skewness groups of numerical data through their quartiles.[1] In addition to the box on a box plot, there can be lines (which are called whiskers) extending from the box indicating variability outside the upper and lower quartiles, thus, the plot is also called the box-and-whisker plot and the box-and-whisker diagram.”

“The range-bar method was first introduced by Mary Eleanor Spear in her book”Charting Statistics” in 1952[4] and again in her book “Practical Charting Techniques” in 1969.[5] The box-and-whisker plot was first introduced in 1970 by John Tukey, who later published on the subject in his book “Exploratory Data Analysis” in 1977.”

Distributions

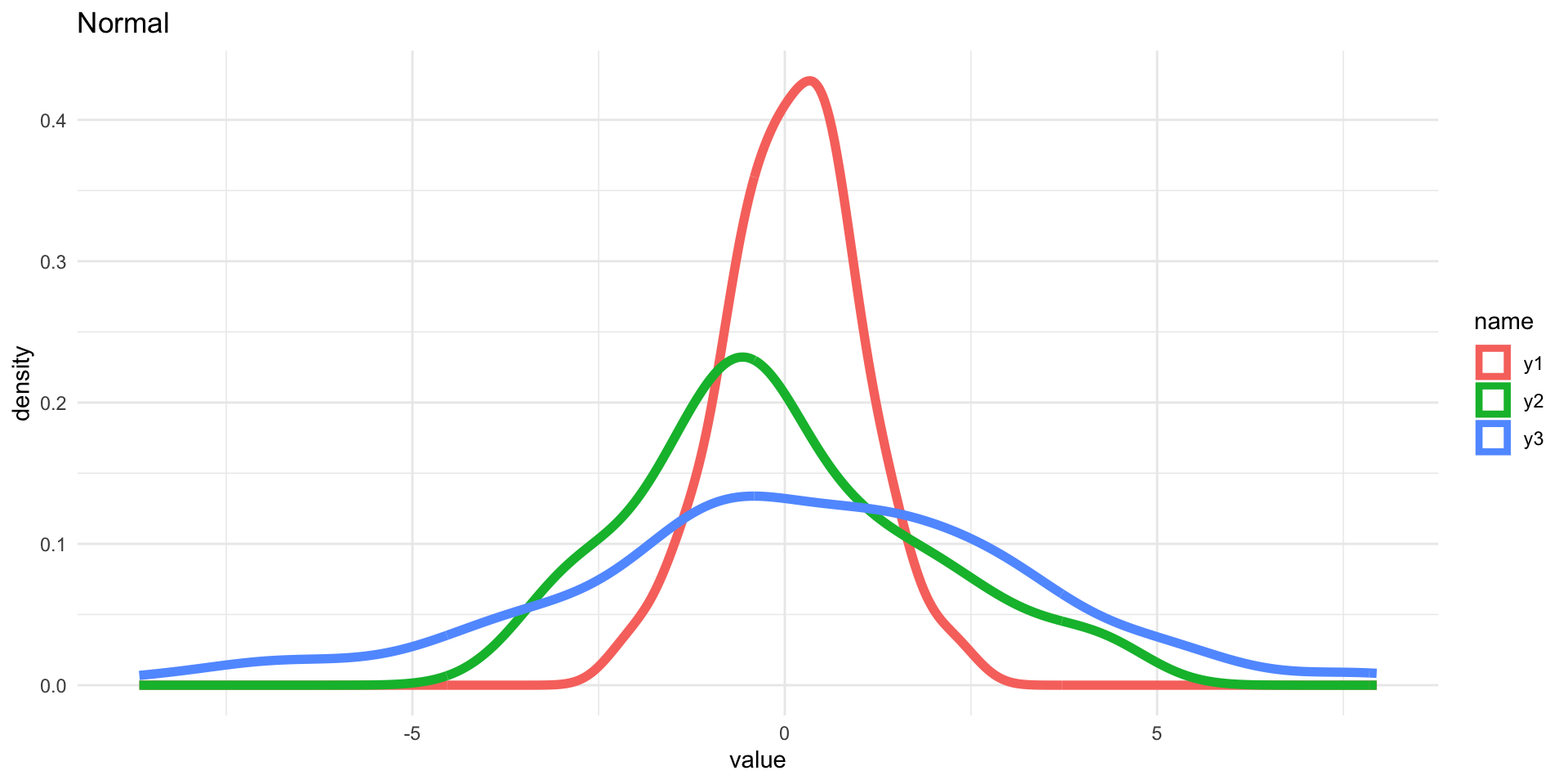

Normal

	vars	n	mean	sd	median	min	max	skew	kurtosis	se
y1	1	100	0.11	0.90	0.11	-2.21	2.40	-0.07	-0.05	0.09
y2	2	100	-0.08	1.92	-0.35	-3.83	4.62	0.44	-0.31	0.19
y3	3	100	0.09	3.10	0.00	-8.67	7.95	-0.24	0.26	0.31

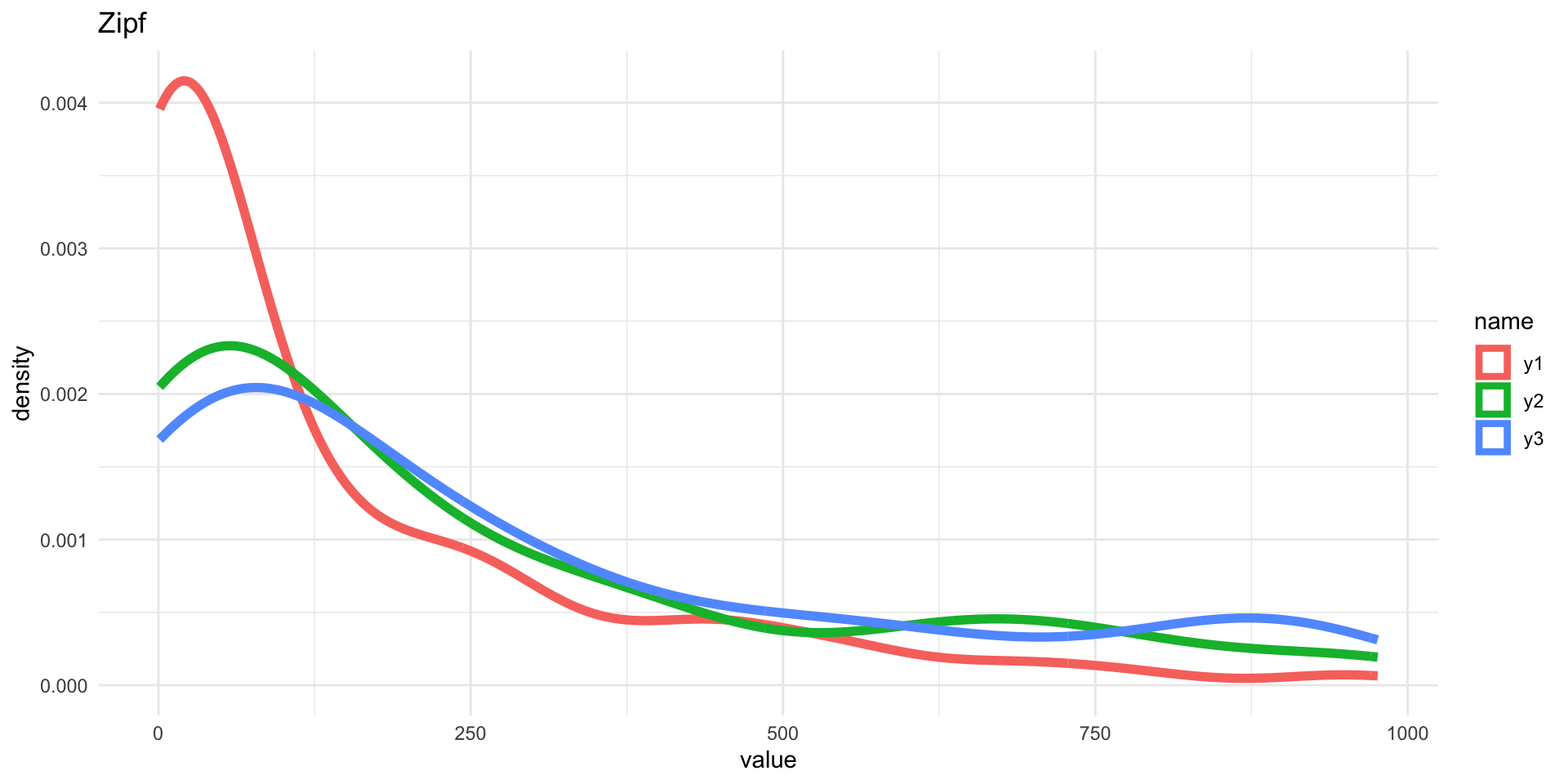

Zipf

	vars	n	mean	sd	median	min	max	skew	kurtosis	se
y1	1	100	139.14	198.89	30.5	1	951	1.83	3.07	19.89
y2	2	100	237.34	270.50	123.0	1	976	1.23	0.40	27.05
y3	3	100	274.25	287.68	154.0	3	965	1.08	-0.11	28.77

Zipf’s law is an empirical law that often holds, approximately, when a list of measured values is sorted in decreasing order. It states that the value of the nth entry is inversely proportional to n. The best known instance of Zipf’s law applies to the frequency table of words in a text or corpus of natural language: word frequency ∝ 1 word rank . {.}

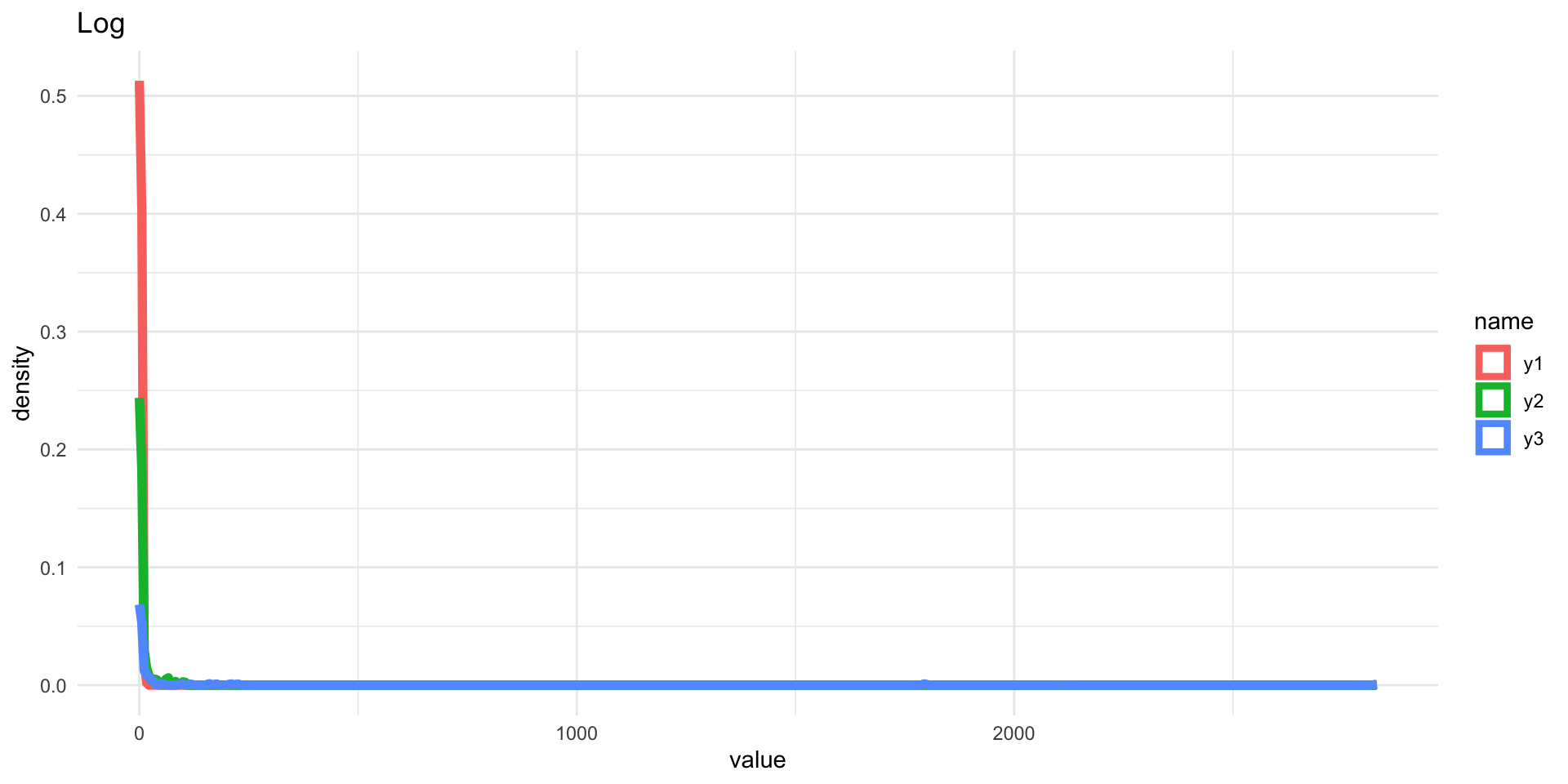

Log

	vars	n	mean	sd	median	min	max	skew	kurtosis	se
y1	1	100	1.65	1.72	1.12	0.11	11.04	2.86	10.49	0.17
y2	2	100	6.25	16.53	0.70	0.02	101.08	3.89	15.74	1.65
y3	3	100	60.71	333.89	1.00	0.00	2828.50	7.10	51.51	33.39

Z-value Test

\[ Z_1 = \frac{| X_1 - \mu |} \sigma \]

where \(X_1\) = observation, \(\mu\) = mean, and \(\sigma\) = standard deviation

# in R
df$z <- (df$points-mean(df$points))/sd(df$points)

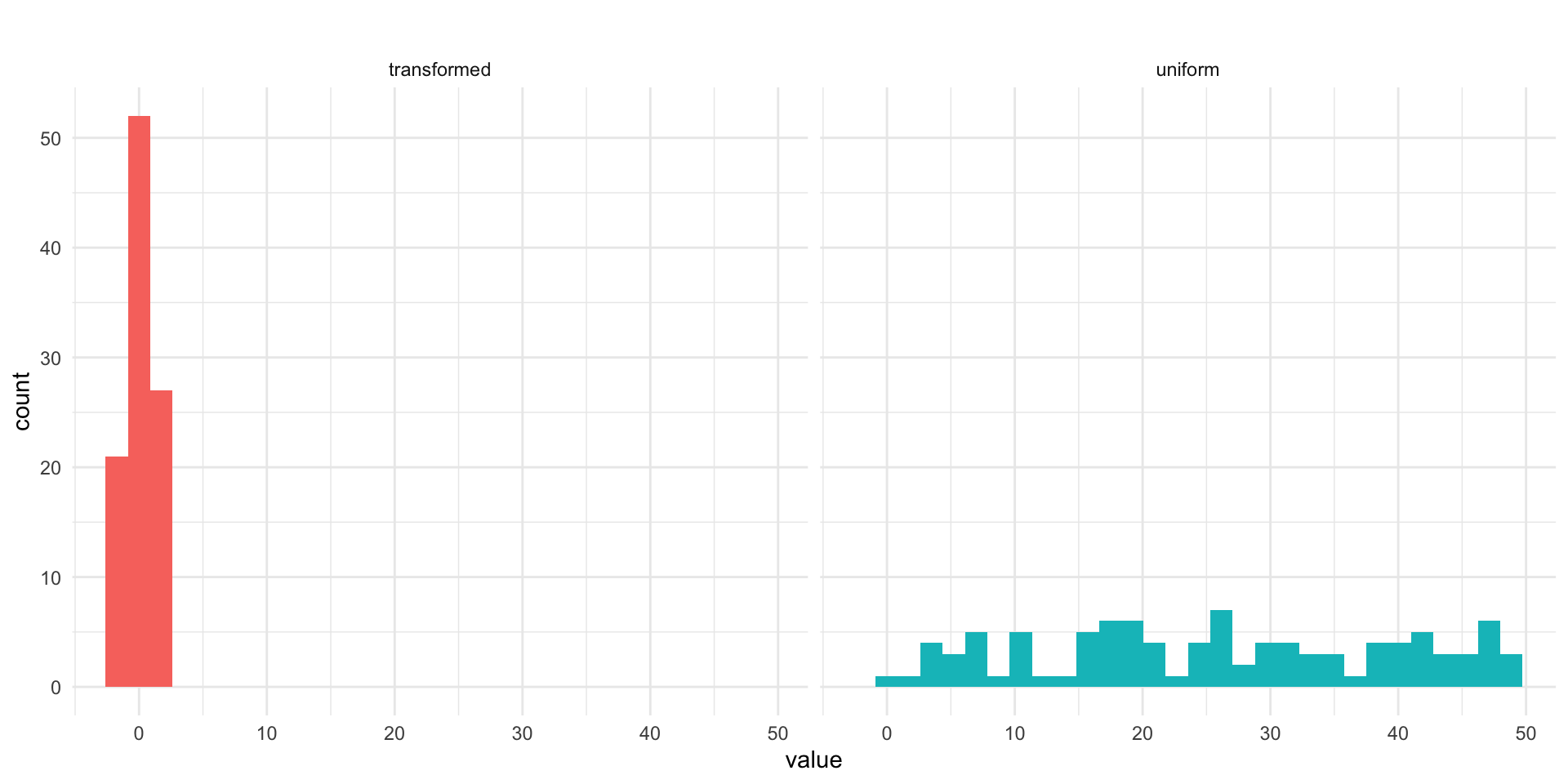

Normalized/Standardized

	vars	n	mean	sd	median	min	max	skew	kurtosis	se
uniform	1	100	25.97	13.94	25.94	0.59	48.78	-0.03	-1.17	1.39
transformed	2	100	0.00	1.00	0.00	-1.82	1.64	-0.03	-1.17	0.10

Boxplots

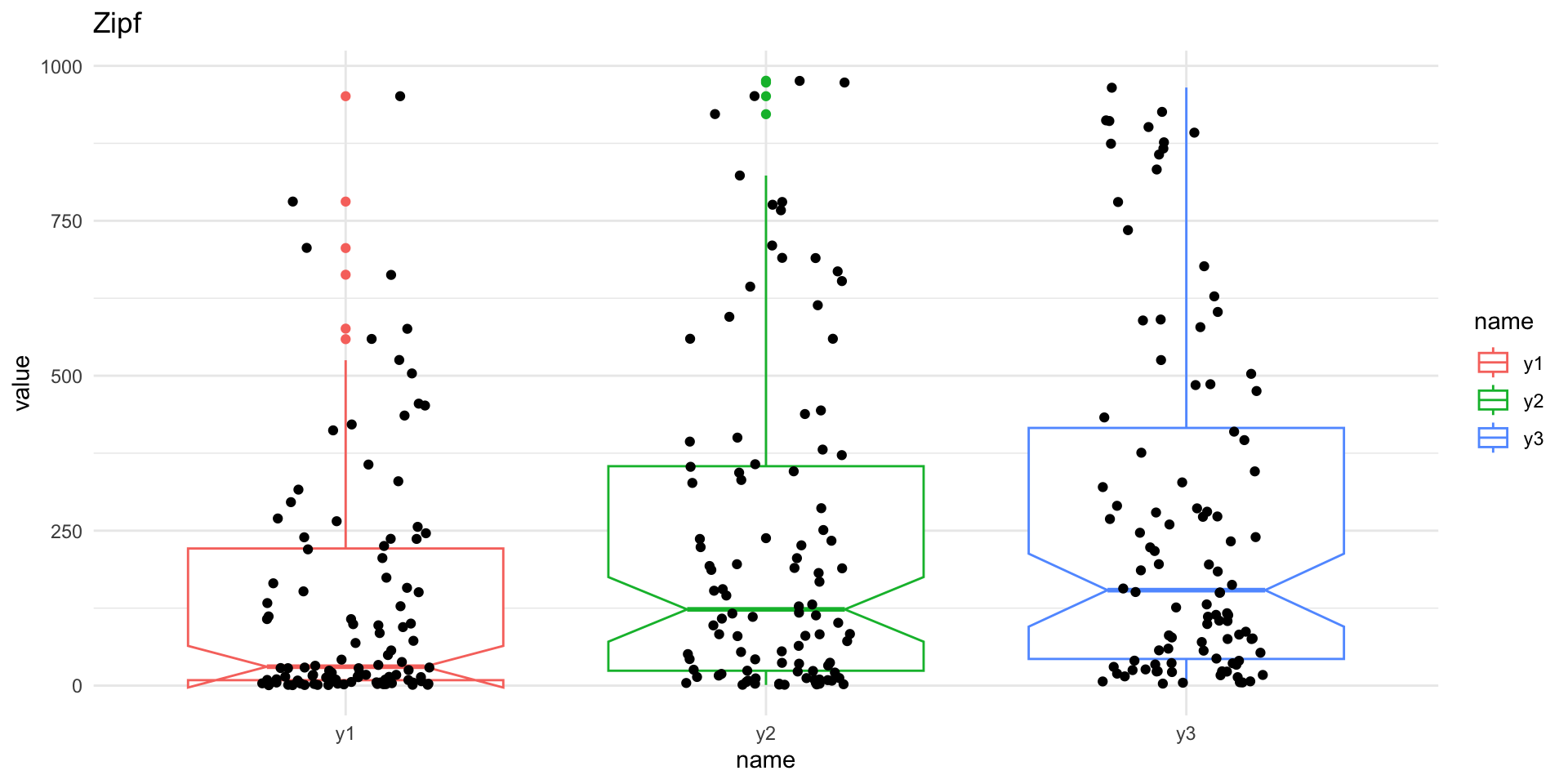

Ziph Box Plots

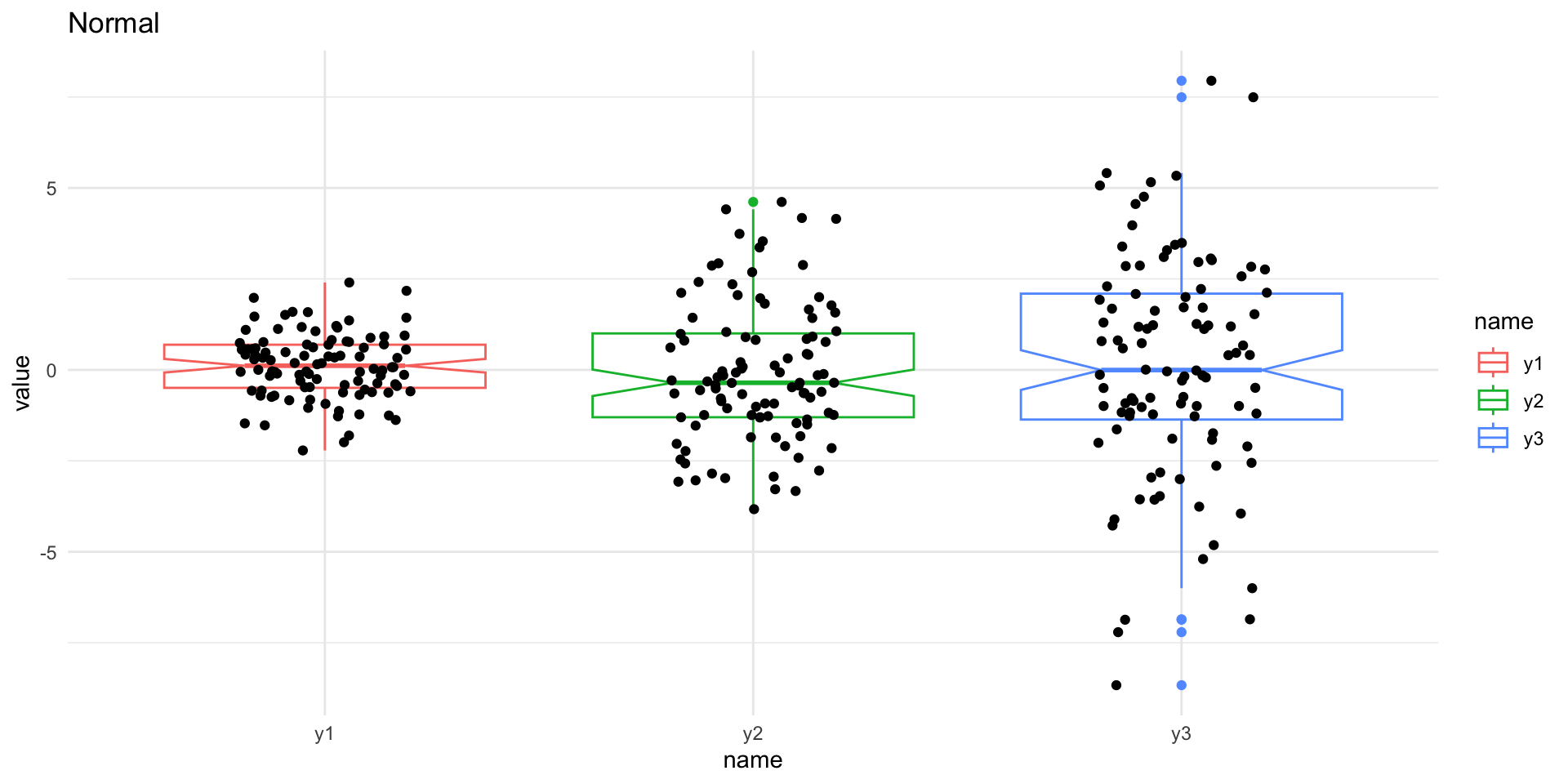

Normal Box Plot

Models

KNN

Best Unsupervised Learning Method

“By using a diverse collection of datasets, several evaluation measures, and a broad range of parameter settings, we argue here that it is typically pointless and unjustified to state the superior behavior of any method for the general case.”[6]

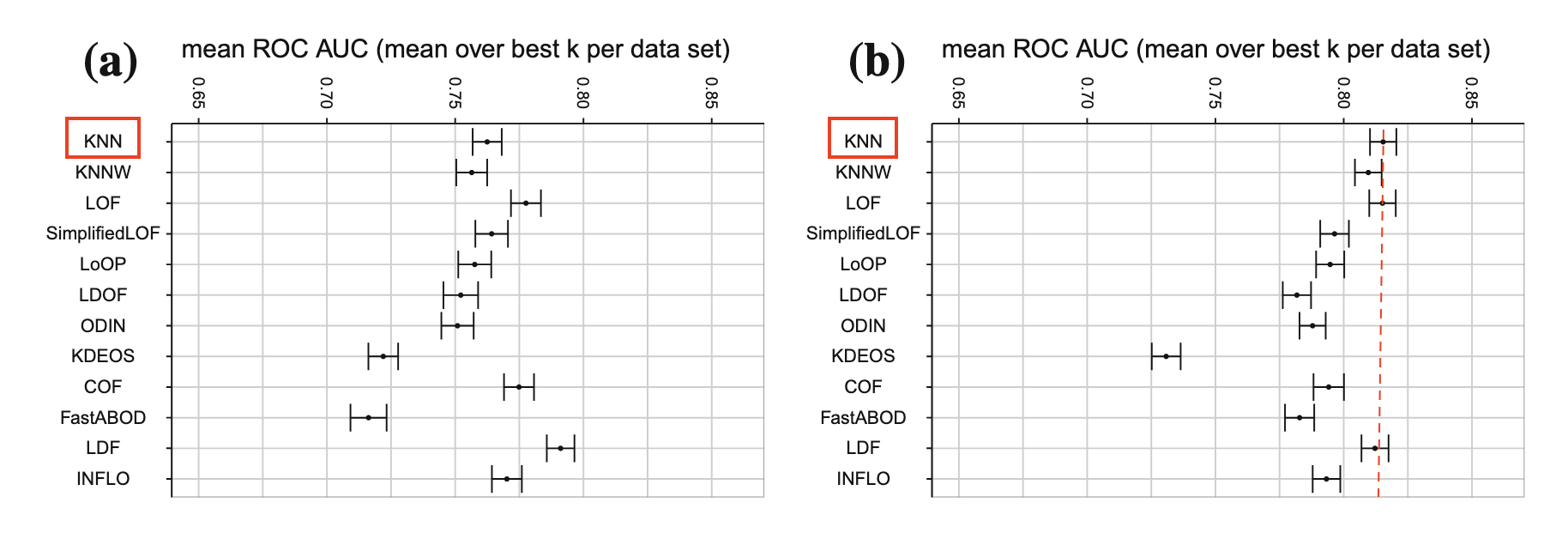

Evaluation of KNN

(a) is unnormalized data, aggregated over all datasets.
(b) is normalized data, aggregated over all datasets.[6]

What Works

The gist of our findings is that, when considering the totality of results . . . the seminal methods kNN, kNNW, and LOF still remain the state of the art —- none of the more recent methods tested offer any comprehensive improvement over those classics, while two methods in particular (LDF and KDEOS) have been found to be noticeably less robust to parameter choices.[6]

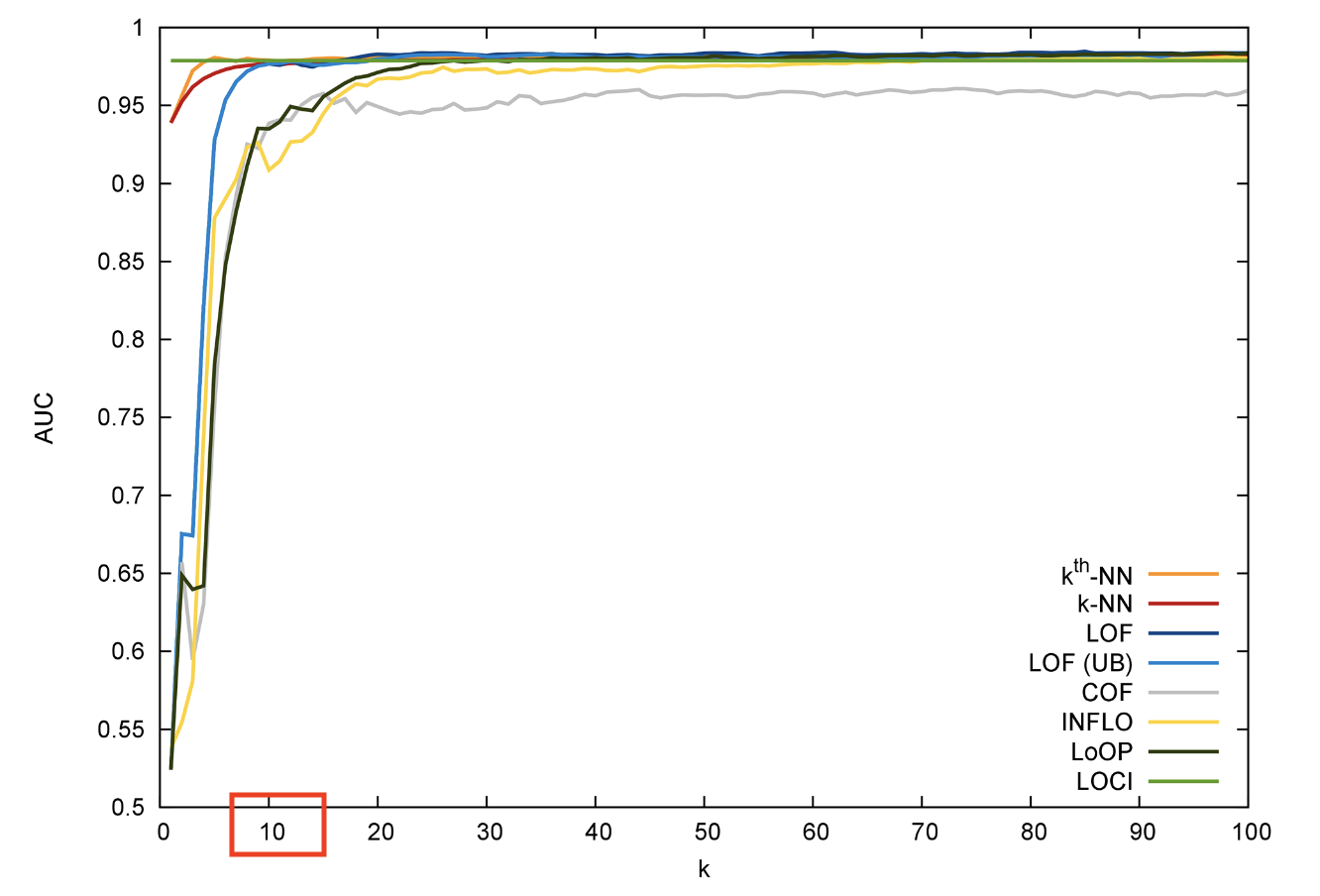

How many neighbors?

Proof

“A key question arises as to how the effectiveness of an outlier detection algorithm should be evaluated. Unfortunately, this is often a difficult task, because . . . ground-truth labeling of data points as outliers or non-outliers is often not available. Therefore, much of the research literature uses case studies to provide an intuitive and qualitative evaluation of the underlying outliers in unsupervised scenarios.”[5]

Data

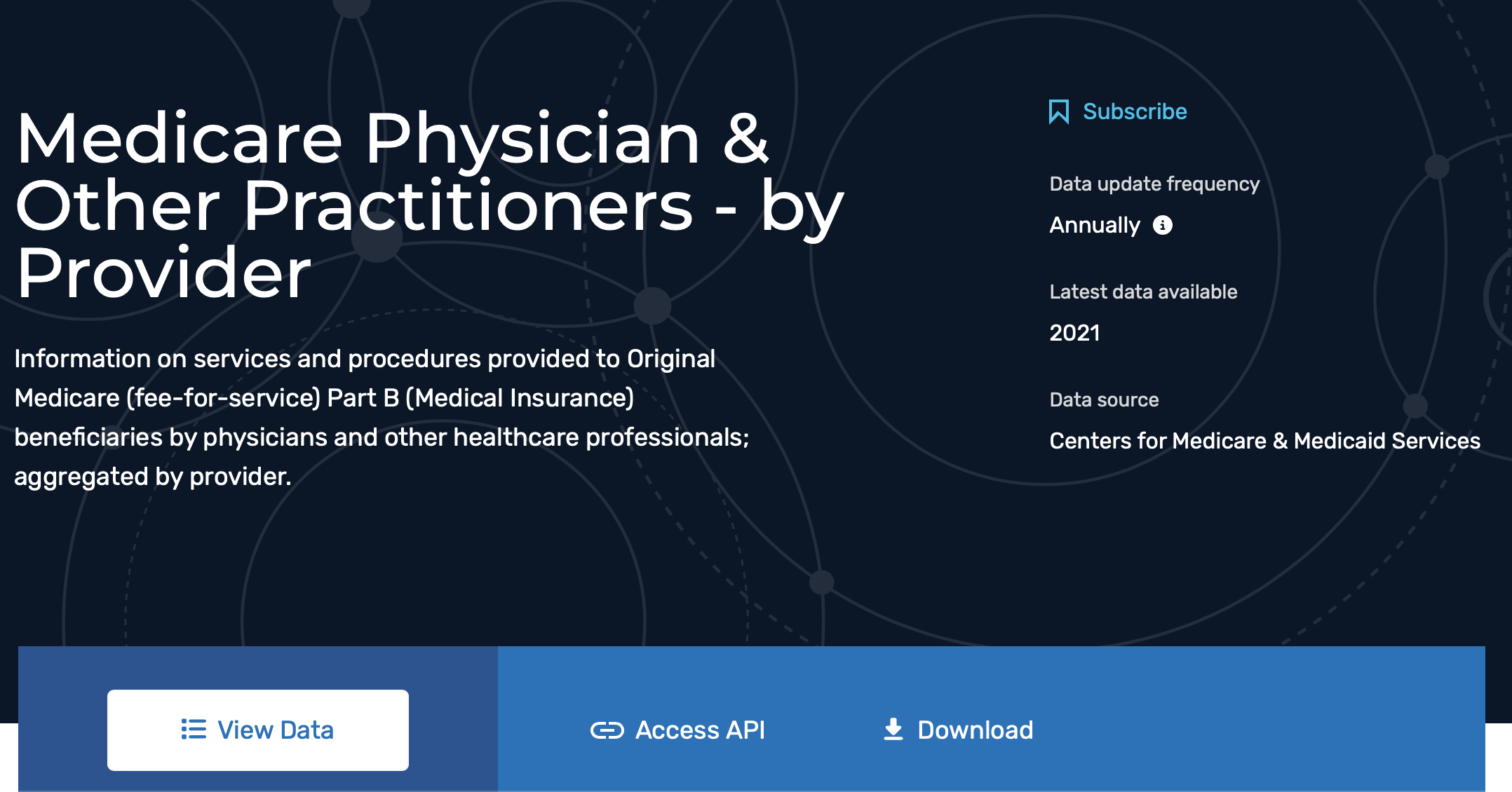

Medicare Claims

• Part B claims
• NPI level
• 2021 3GB, 9.8m claims

Structure

	example
year	2021
rndrng_prvdr_ruca	1
rndrng_npi	1003000423
rndrng_prvdr_last_org_name	Velotta
rndrng_prvdr_type	Obstetrics & Gynecology
rndrng_prvdr_state_abrvtn	OH
rndrng_prvdr_city	Cleveland
tot_benes_mean	28.33333
tot_srvcs_mean	29
avg_mdcr_stdzd_amt_mean	28.49333

RUCA

USDA Economic Research Service.[7]

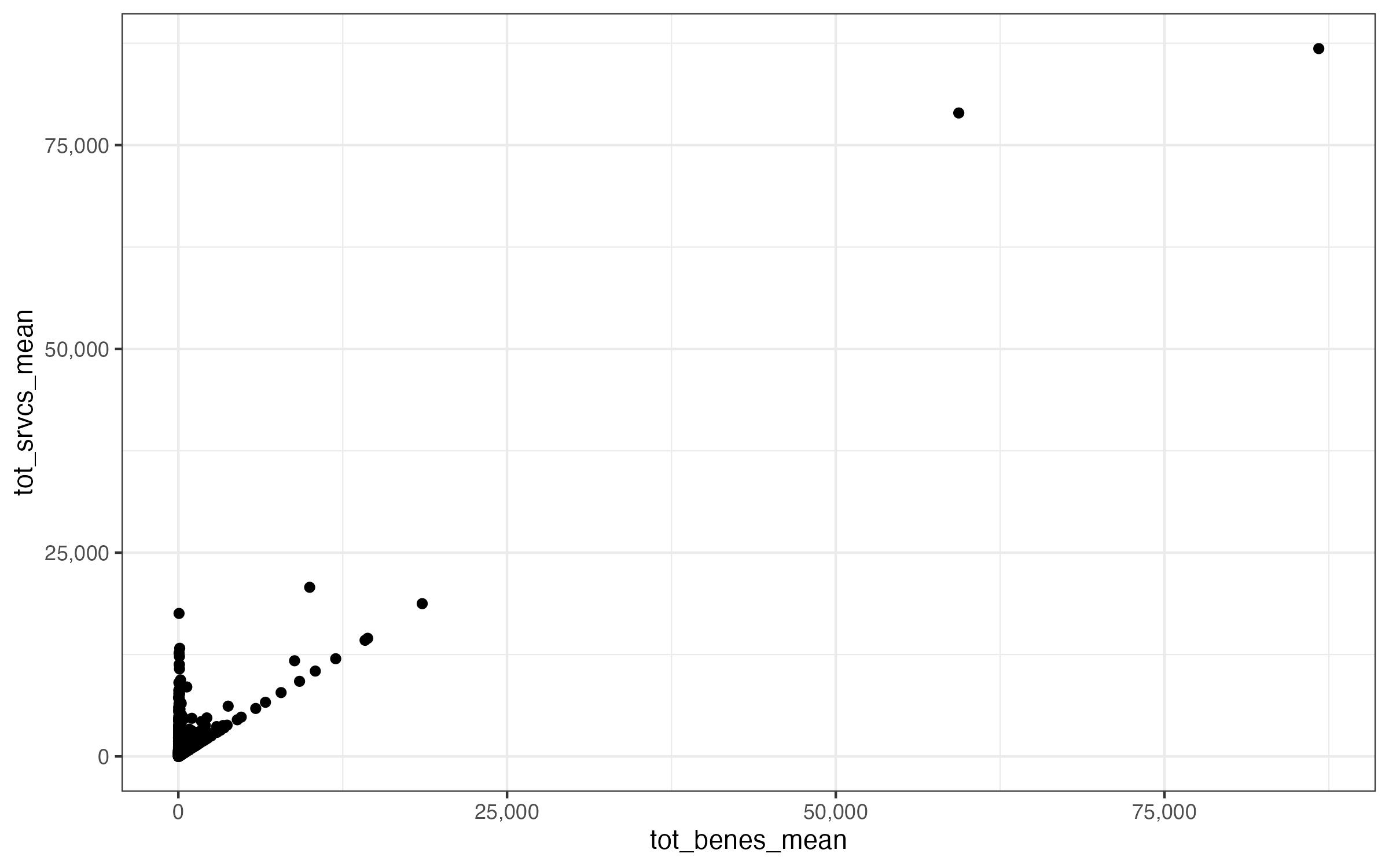

Medicare Top 25 Metros & Specialties - Outliers

	vars	n	mean	sd	median	min	max	range	skew	kurtosis	se
tot_benes_mean	1	132369	53.4	313.8	36.5	11	86733.0	86722.0	214.8	53786.7	0.9
tot_srvcs_mean	2	132369	110.3	422.5	56.0	11	86843.5	86832.5	120.8	22744.6	1.2

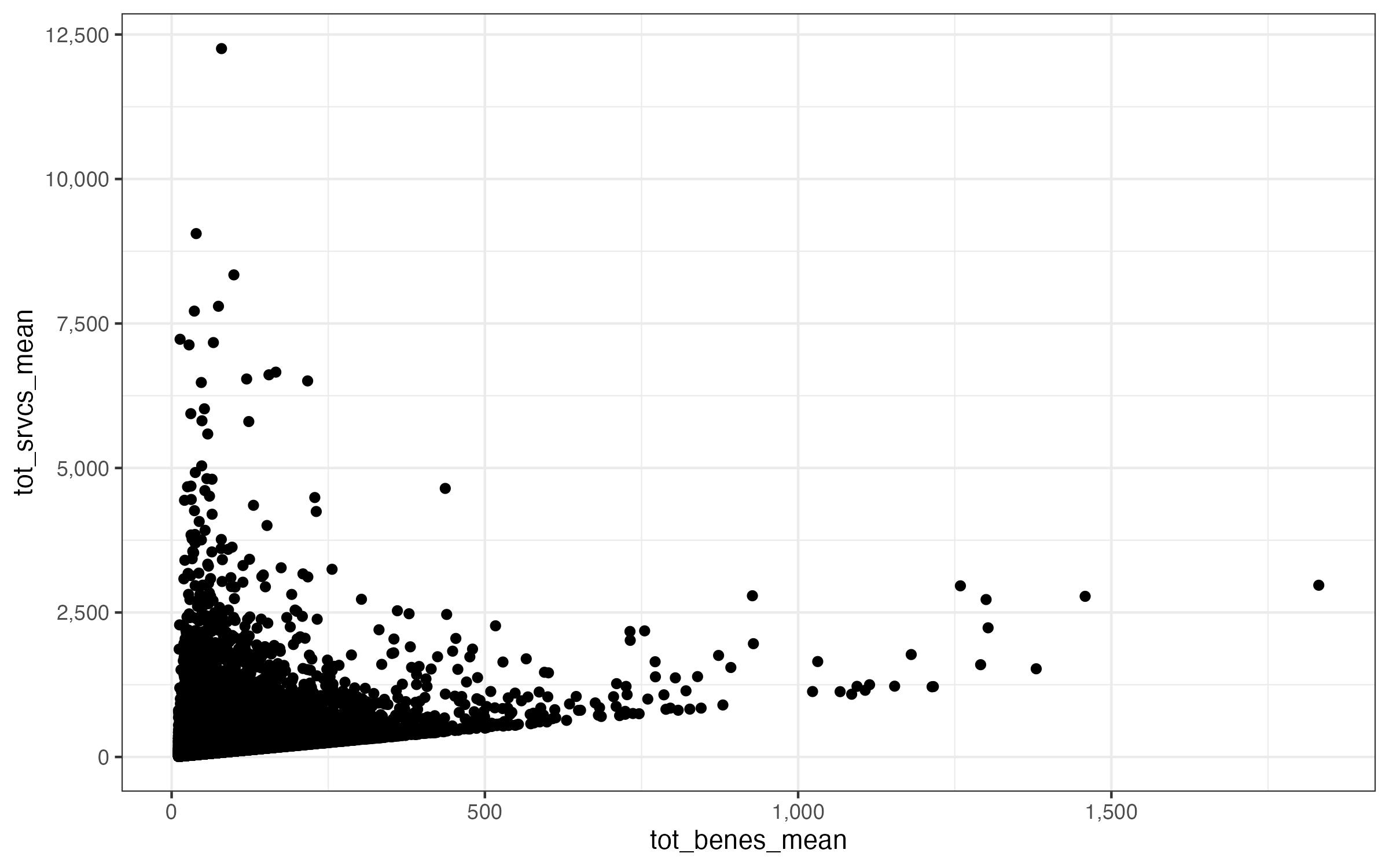

Medicare Top 25 Metros & Specialties - No Outliers

	vars	n	mean	sd	median	min	max	range	skew	kurtosis	se
tot_benes_mean	1	131404	49.3	46.5	36.3	11	1831.0	1820.0	6.1	97.6	0.1
tot_srvcs_mean	2	131404	101.2	194.4	55.7	11	12256.1	12245.1	14.1	414.8	0.5

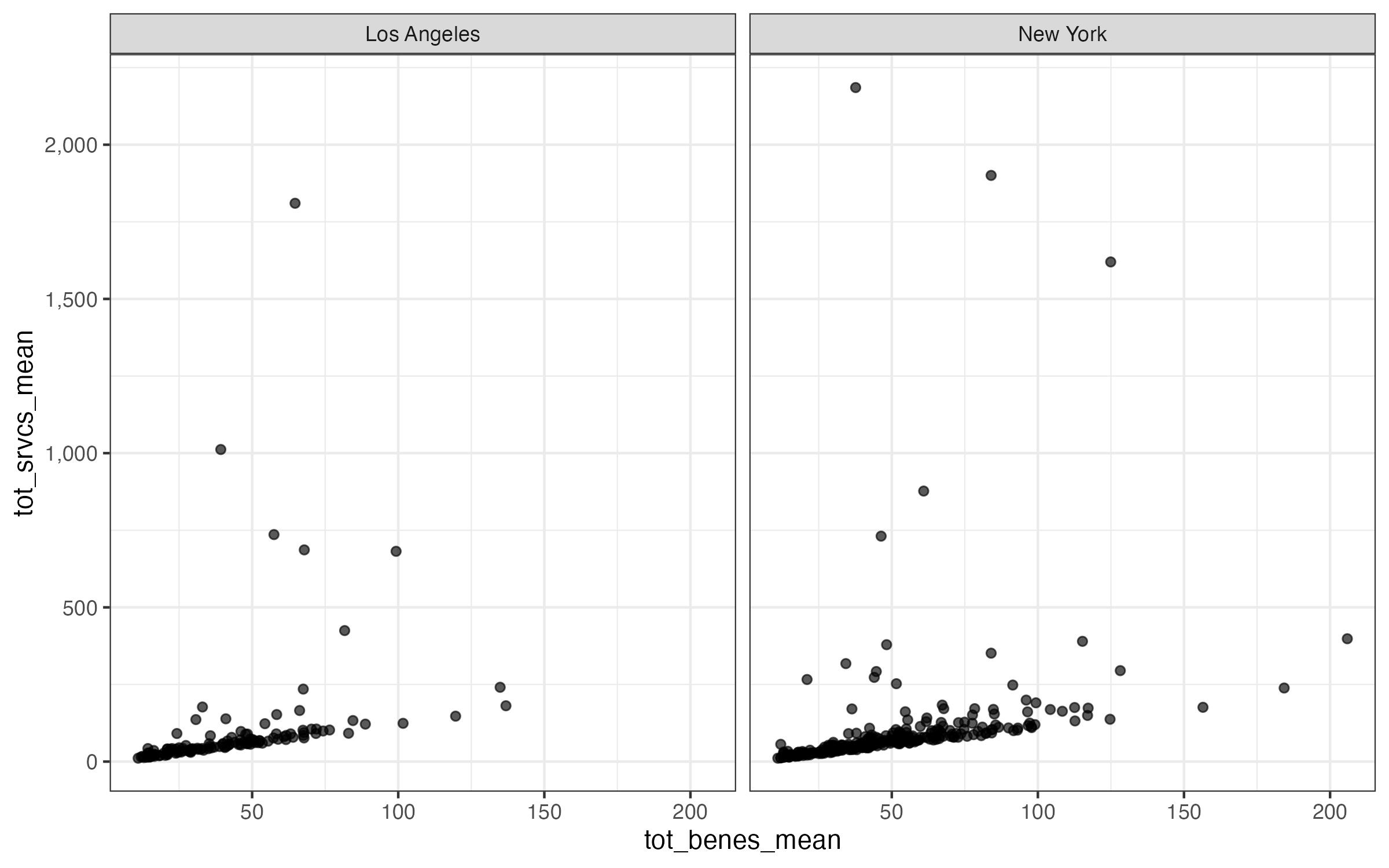

Medicare Orthopedic Claims

	vars	n	mean	sd	median	min	max	range	skew	kurtosis	se
tot_benes_mean	1	430	47.0	27.3	41.8	11	205.9	194.9	1.6	4.3	1.3
tot_srvcs_mean	2	430	99.7	202.4	58.6	11	2185.3	2174.3	7.2	59.4	9.8

Scagnostics

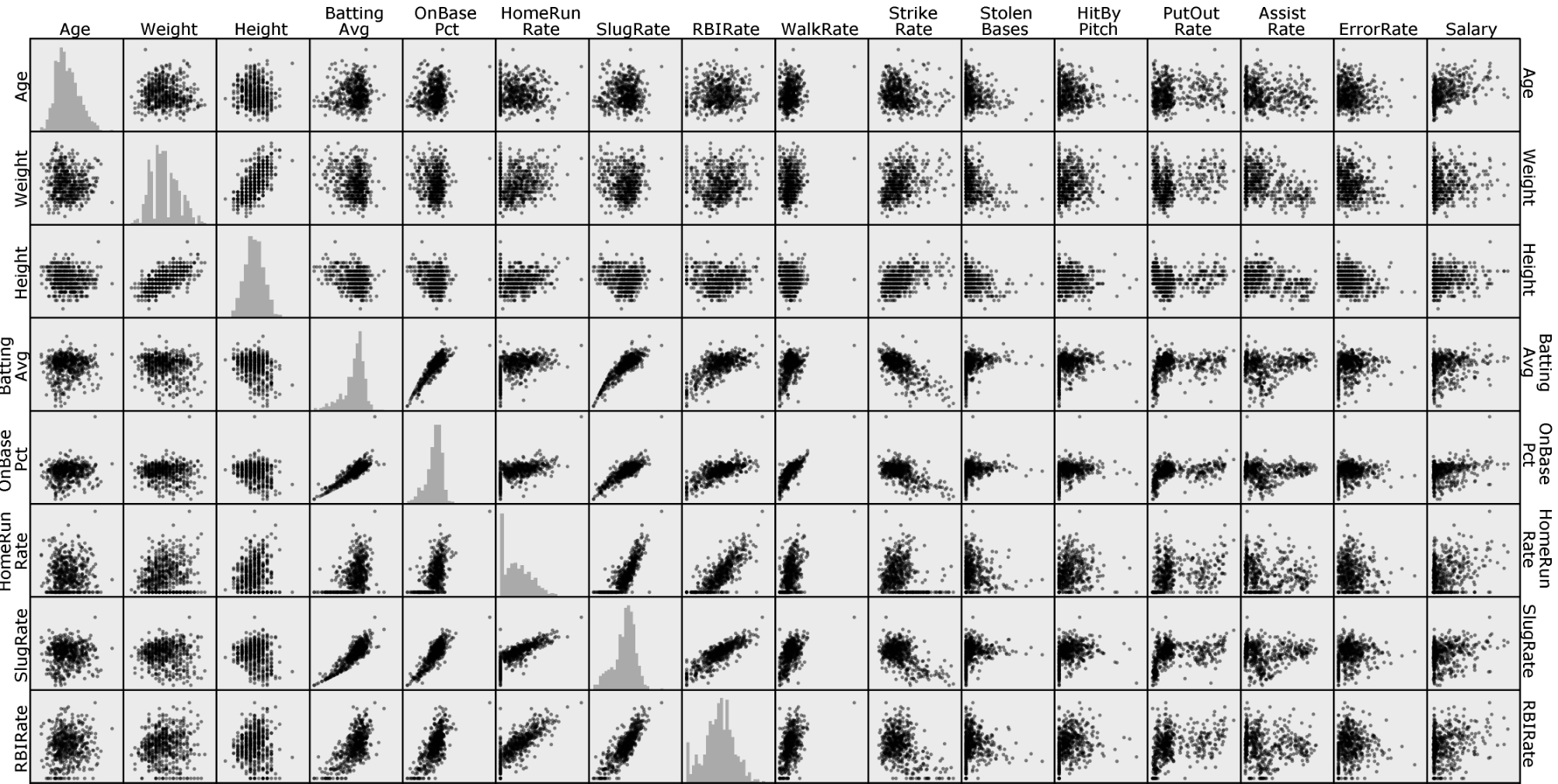

Scagnostics is a Tukey neologism for the term scatterplot diagnostics. Scagnostics (scatterplot diagnostics) is a series of measures that characterize certain properties of a point cloud in a scatter plot. They are useful tool for discovering interesting or unusual scatterplots from a scatterplot matrix, without having to look at every individual plot.

Scag

Nostics

A statistical description of a bivariate plot using 9 metrics:

1. outlying
2. skewed
3. clumpy
4. sparse
5. striated

6. convex
7. skinny
8. stringy
9. monotony

For more information, see Wilkinson.[8]

Mtcars

scagnostics::scagnostics(mtcars[, c(1:3)])

             mpg * cyl mpg * disp cyl * disp
Outlying  0.0000000000 0.00000000  0.0000000
Skewed    0.7440304272 0.78121701  0.9476808
Clumpy    0.4571866855 0.09834646  0.6989270
Sparse    0.1349678932 0.16478294  0.4984704
Striated  0.5000000000 0.03333333  0.6000000
Convex    0.0003757415 0.20208117  0.0000000
Skinny    0.7556553584 0.67252782  1.0000000
Stringy   0.6141250000 0.49616609  1.0000000
Monotonic 0.4771277625 0.58381611  0.8182267
attr(,"class")
[1] "scagnostics"

Interactive Dashboard

Review

• Do Medicare claims resemble a logrithmic or normal distribution? Why?

• In describing the tails of a distribution, would skew or kurtosis be most appropriate?

• Is the KNN algorithm a “seminal” approach that remains “state of the art” or an “avant-garde” approach?

• What diagnostics were created to describe the “point cloud” of a bivariate plot?

Thank You!

Links

• Outlier Analysis Presentation
• Outlier Analysis Repository
• Outlier Analysis Dashboard
• Outlier Analysis Dashboard Repository

Bibliography

[1]

P. D. Talagala, R. J. Hyndman, and K. Smith-Miles, “Anomaly Detection in High-Dimensional Data,” Journal of Computational and Graphical Statistics, vol. 30, no. 2, pp. 360–374, Jun. 2021, doi: 10.1080/10618600.2020.1807997.

[2]

D. M. Hawkins, Identification of outliers, vol. 11. Springer, 1980.

[3]

M. Goldstein and S. Uchida, “A Comparative Evaluation of Unsupervised Anomaly Detection Algorithms for Multivariate Data,” PLOS ONE, vol. 11, no. 4, p. e0152173, Apr. 2016, doi: 10.1371/journal.pone.0152173.

[4]

L. Wilkinson, “Visualizing Big Data Outliers Through Distributed Aggregation,” IEEE Transactions on Visualization and Computer Graphics, vol. 24, no. 1, pp. 256–266, Jan. 2018, doi: 10.1109/TVCG.2017.2744685.

[5]

C. C. Aggarwal, Outlier Analysis. Cham: Springer International Publishing, 2017. doi: 10.1007/978-3-319-47578-3.

[6]

G. O. Campos et al., “On the evaluation of unsupervised outlier detection: Measures, datasets, and an empirical study,” Data Mining and Knowledge Discovery, vol. 30, no. 4, pp. 891–927, Jul. 2016, doi: 10.1007/s10618-015-0444-8.

[7]

“USDA ERS - Rural-Urban Commuting Area Codes.” Accessed: Mar. 21, 2024. [Online]. Available: https://www.ers.usda.gov/data-products/rural-urban-commuting-area-codes/

[8]

L. Wilkinson and G. Wills, “Scagnostics distributions,” Journal of Computational and Graphical Statistics, vol. 17, no. 2, pp. 473–491, 2008.
